Suku Cadang Tempel F20: Sistem Bahan Bakar
Sep 13, 2025
Tinggalkan pesan

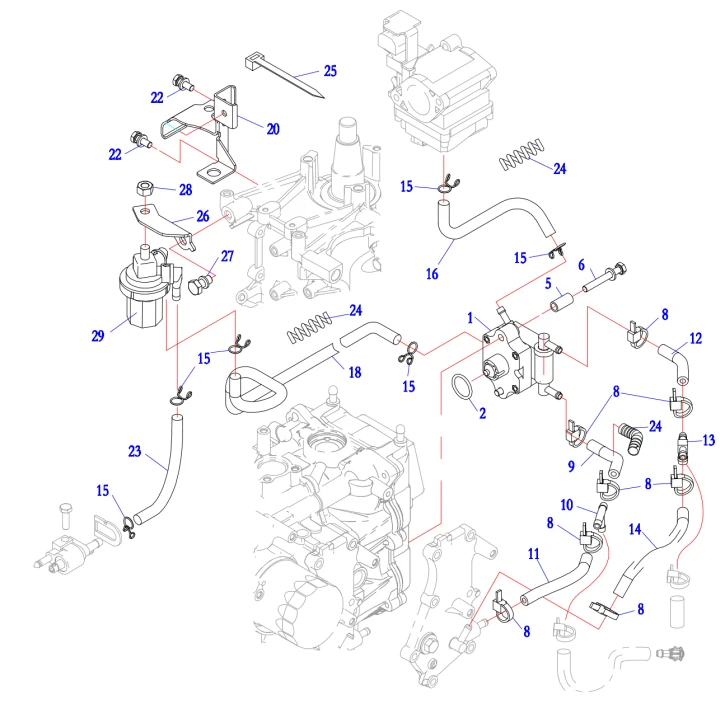

| CALON GLORIA F20 | ||||||
| NO REF | Kode Bahan | KODE BAGIAN | DESKRIPSI(ID) | satuan | KEMASAN | YAMAHA |
| 1 | C3045517 | F20-01.07.05.00 | Perakitan Pompa Bahan Bakar | 1 | 6AH-24410-00 | |
| 2 | C3055519 | F20-01.07.07 | Cincin O-Pompa Bahan Bakar | 1 | 93210-20M65 | |
| 5 | C3025508 | F20-01.07.06 | Tabung Pengatur Jarak Pompa Bahan Bakar | 2 | ||
| 6 | C4010286 | GB/T9074.14(BXG) | Baut Hex dengan Rakitan Washer Datar M6X45 (Benang Penuh) | 2 | ||
| 8 | C4050010 | Dasi Kabel Nilon 2,5×50 | 8 | |||
| 9 | C3055516 | F20-01.06.36 | Selang Air D (5×9×115) | 1 | 6AH-24322-00 | |
| 10 | C3065219 | F6-01.07.13 | Konektor Tee | 1 | 688-24378-00 | |
| 11 | C3055515 | F20-01.06.35 | Selang Air C (5×9×65) | 1 | 90445-09061 | |
| 12 | C3055514 | F20-01.06.33 | Selang Air B (5×9×75) | 1 | 90445-09026 | |
| 13 | C3065513 | F20-01.06.41 | Konektor Tee Kepala Persegi | 1 | 6C5-24378-00 | |
| 14 | C3055513 | F20-01.06.32 | Selang Air A (5×9×150) | 1 | 90445-09082 | |
| 15 | C3080502 | T20-01.07.03 | Klem Selang 9 | 6 | 90467-09M17 | |
| 16 | C3055520 | F20-01.07.08 | Selang Saluran Masuk Bahan Bakar Karburator | 1 | 6AH-24313-00 | |
| 18 | C3055518 | F20-01.07.04 | Filter Selang Keluaran | 1 | 6AH-24312-00 | |
| 20 | C3075513 | F20-01.07.03.00 | Braket Selang Keluaran | 1 | ||
| 22 | C4010280 | GB/T9074.14(BXG) | Baut Kepala Hex dengan Washer Datar M6×16 (Benang Penuh) | 2 | ||
| 23 | C3055517 | F20-01.07.01 | Pipa Masuk Filter Bahan Bakar φ5×φ9×130 | 1 | 6AH-24311-00 | |
| 24 | C3095509 | F20-01.06.37 | Tabung Luka 75mm | 3 | ||
| 25 | C4050009 | Dasi Kabel Nilon 4,8*200 | 1 | |||
| 26 | C3075512 | F20-01.07.02 | Braket Filter | 1 | 6AH-24566-00 | |
| 27 | C4010290 | GB/T9074.14(BXG) | Baut Kepala Hex dengan Washer Datar M8×16 (Benang Penuh) | 1 | ||
| 28 | C4010406 | GB/T6170 | Kacang Hex M8 | 1 | ||
| 29 | C3060504 | T20-01.07.05.00 | Rakitan Filter Bahan Bakar | 1 | 61N-24560-10 | |
